Air Conditioning Product

Electric Constant Flow Valve

  • Product Model: 34-10-XX
  • Supply Voltage: 220VAC/24VAC
  • Rated Power: 3W
  • Optional Specifications: DN15/DN20/DN25
  • Nominal Pressure: 1.6MPa
  • Medium Temperature: -10℃~110℃
  • Ambient Temperature: -20℃~50℃
  • Working Pressure Difference: 20kPa~220kPa
  • Rated Flow: 0.45/0.65/0.95/1.25/1.75 m³/h
  • Closing Pressure: 150kPa

34-10-XX

Electric Constant Flow Valve

  • Product Model: 34-21-XX
  • Supply Voltage: 220VAC/24VAC
  • Rated Power: <6.5W
  • Optional Specifications: DN15/DN20/DN25
  • Nominal Pressure: 1.6MPa
  • Medium Temperature: -10℃~110℃
  • Ambient Temperature: -20℃~50℃
  • Closing Pressure: 180kPa

34-21-XX

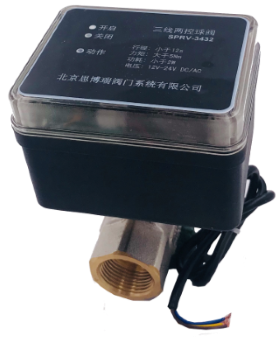

Electric Ball Valve

  • Product Model: 34-30-XX
  • Supply Voltage: 24VDC
  • Rated Power: <5W
  • Optional Specifications: DN15/DN20/DN25
  • Nominal Pressure: 1.6MPa
  • Medium Temperature: -10℃~110℃
  • Ambient Temperature: -20℃~50℃

34-30-XX

Room Thermostat

  • Product Model: 62-60-01
  • Supply Voltage: 220VAC
  • Maximum Current: 10A
  • Control Accuracy: ±1℃
  • Ambient Temperature: 0℃~45℃
  • Control Temperature: 5℃~35℃
  • Control Mode: cooling, heating

62-60-01
