Domestic Hot Water

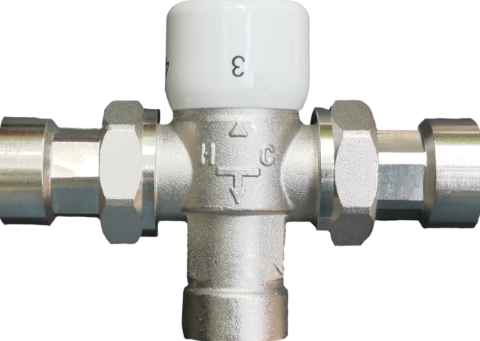

Thermostatic Mixing Valve (TMV)

  • Product Model: 14-10-XX
  • Main Uses: bathroom, kitchen, floor heating
  • Maximum Static Pressure: 10bar
  • Dynamic Pressure: 0.2bar~1bar
  • Hot Water Temperature: 52℃~65℃
  • Cold Water Temperature: 5℃~20℃
  • Minimum Temperature Difference: 10℃
  • Adjustment Range: 38℃~52℃
  • Interface Type: Screw thread
  • Size: DN15/DN20
  • Flow Coefficient: 1.5m³/h / 1.7m³/h
  • Implementation Standard: EN1111

14-10-XX

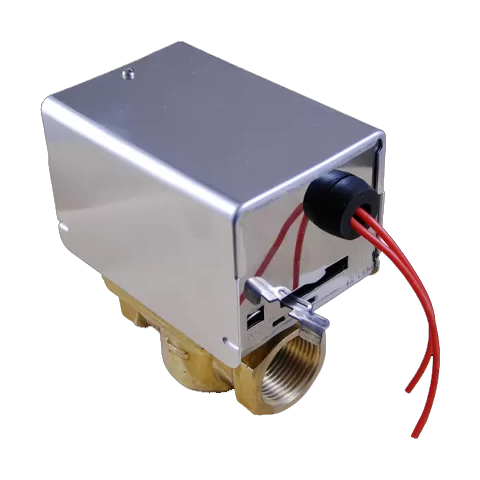

2 Way Zone Valve

  • Product Model: MV-T3415
  • Power: 230V/120V/24V 50Hz
  • Maximum Output Current: 3A
  • Motor Power: 3W
  • Line Length: 1m
  • Protection Class: IP40
  • Maximum Static Pressure: 10bar
  • Closing Pressure Difference: 1bar
  • Medium Temperature: -15℃~120℃
  • Ambient Temperature: Not higher than 50℃
  • Connection Type: Screw thread
  • Materials: Brass, SS

MV-T3415

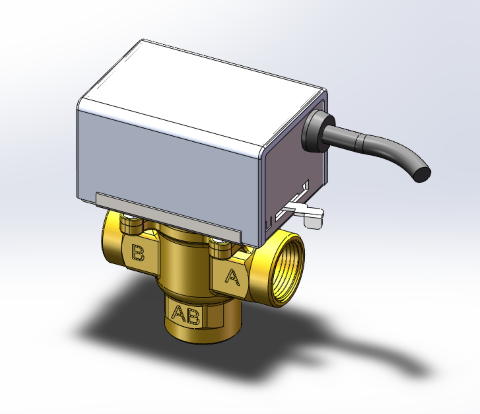

3 Way Zone Valve

  • Product Model: MV-T3410
  • Power: 230V/120V/24V 50Hz
  • Maximum Output Current: 3A
  • Motor Power: 3W
  • Line Length: 1m
  • Protection Class: IP40
  • Maximum Static Pressure: 10bar
  • Closing Pressure Difference: 1bar
  • Medium Temperature: -15℃~120℃
  • Ambient Temperature: Not higher than 50℃
  • Connection Type: Screw thread
  • Materials: Brass, SS

MV-T3410
