Hydraulic Balance

Balancing Valve

  • Product Model: 36-50-XX / 36-60-XX
  • Specification And Size: DN15~DN50 / DN65~DN350
  • Nominal Pressure: 1.6MPa / 2.5MPa;
  • Body Material: brass / ductile iron
  • Medium Temperature: -10℃~110℃
  • Control Accuracy: ±5%

36-50-XX 36-60-XX

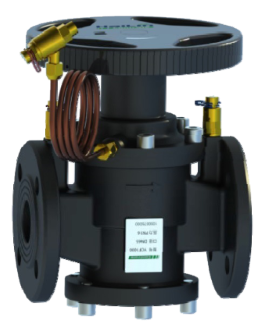

Pressure Valve

  • Product Model: 39-50-XX / 39-60-XX
  • Specification And Size: DN15~DN50 / DN65~DN350
  • Nominal Pressure: 1.6MPa / 2.5MPa;
  • Control Pressure Difference: 30kPa~79kPa / 40kPa~140kPa
  • Body Material: brass/ductile iron
  • Medium Temperature: -10℃~110℃
  • Control Accuracy: ±5%

39-50-XX 39-60-XX

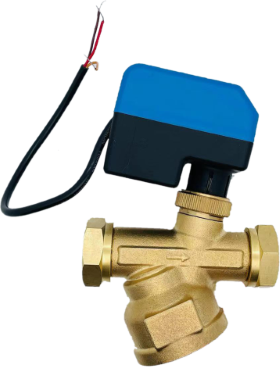

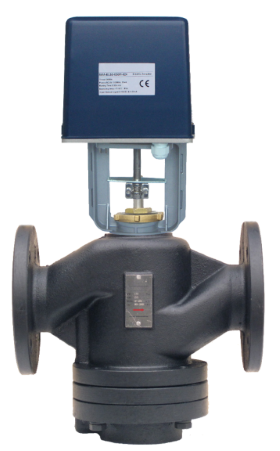

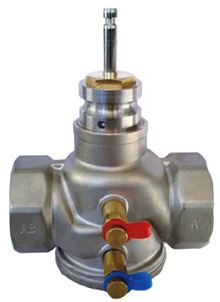

Pressure Independent Control Valve (PICV)

  • Product Model: 35-50-XX / 35-55-XX / 35-60-XX
  • Specification And Size: DN15~DN32 / DN40~DN50 / DN65~DN350
  • Nominal Pressure: 1.6MPa / 2.5MPa;
  • Control Pressure Difference: 30kPa~79kPa/40kPa~140kPa
  • Body Material: brass / stainless steel / ductile iron
  • Medium Temperature: -10℃~110℃
  • Control Accuracy: ±5%

35-50-XX 35-55-XX 35-60-XX
