Radiator Heating

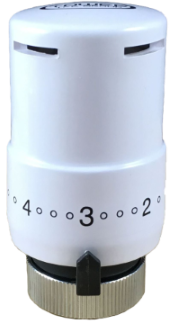

TRV-HEND

  • Product Model: 22-00-01
  • Finish: white / chrome plated
  • Maximum Temperature: 50℃
  • Connection Type: Thread M30X1.5/M28X1.5
  • Body Material: ABS+PA66
  • Nut Material: Brass chrome plated
  • Temperature Control Range: 7℃~28℃
  • Implementation Standards: EN215

22-00-01

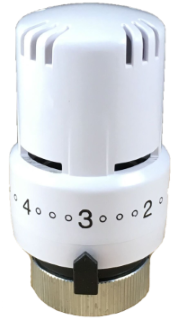

TRV-HEND

  • Product Model: 22-00-03
  • Finish: white/chrome plated
  • Maximum Temperature: 50℃
  • Connection Type: Thread M30X1.5/M28X1.5
  • Body Material: ABS+PA66
  • Nut Material: Brass chrome plated
  • Temperature Control Range: 7℃~28℃
  • Implementation Standards: EN215

22-00-03

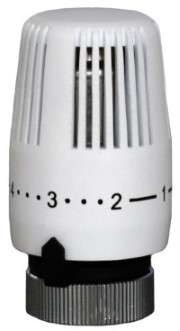

TRV-HEND

  • Product Model: 22-00-05
  • Finish: White
  • Maximum Temperature: 50℃
  • Connection Type: Thread M30X1.5/M28X1.5
  • Body Material: ABS+PA66
  • Nut Material: Brass chrome plated
  • Temperature Control Range: 7℃~28℃
  • Implementation Standards: EN215

22-00-05

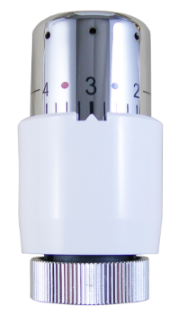

TRV-HEND

  • Product Model: 22-10-04
  • Finish: White
  • Maximum Temperature: 50℃
  • Connection Type: Thread M30X1.5
  • Body Material: ABS+PA66
  • Nut Material: Brass chrome plated
  • Temperature Control Range: 7℃~28℃
  • Implementation Standards: EN215

22-10-04

TRV Body (BS Standard)

  • Product Model: 12-11/12-21
  • Tpye: Straight/angular
  • Installation: BS/EN1254-2
  • Maximum Pressure: 1.0MPa
  • Maximum Temperature: 110℃
  • Interface Type: M30x1.5
  • Body Material: Brass chrome plated
  • Production Standard: EN215

12-11-15 12-21-15

Lock Shield (BS Standard)

  • Product Model: 11-11/11-21
  • Tpye: Straight/angular
  • Installation: BS/EN1254-2
  • Maximum Pressure: 1.0MPa
  • Maximum Temperature: 110℃
  • Body Material: Brass chrome plated

11-11-15 11-21-15

TRV Body (F Standard)

  • Product Model: 12-51/12-61
  • Tpye: Straight/angular
  • Installation: ISO7-1
  • Maximum Pressure: 1.0MPa
  • Maximum Temperature: 110℃
  • Interface Type: M30x1.5
  • Body Material: Brass Ni plated
  • Production Standard: EN215

12-51-15 12-61-15

Lock Shield (ISO Standard)

  • Product Model: 11-51/11-61
  • Tpye: Straight/angular
  • Installation: 1/2" / 3/4"
  • Maximum Pressure: 1.0MPa
  • Maximum Temperature: 110℃
  • Body Material: Brass Ni plated

11-51-15 11-61-15

TRV Body (Three Way)

  • Product Model: 12-78/12-79
  • Optional Specifications: DN15/DN20/DN25
  • Maximum Pressure: 1.0MPa
  • Maximum Temperature: 110℃
  • Interface Type: thread
  • Body Material: Brass Ni plated

12-78-15
