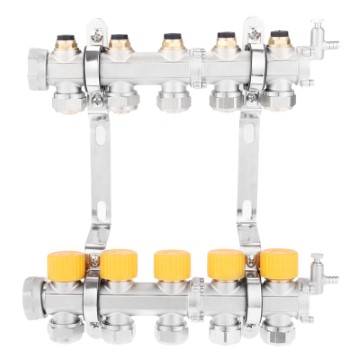

Underfloor Heating

Manifold

  • Product Model: 25-20-XX / 25-30-XX
  • Surface Treatment: Brass chrome plating
  • Maximum Temperature Resistance: 100°C
  • Pressure Rating: 1.0MPa
  • Main Pipe Thread: thread G1"
  • Branch Pipe Size: 1216 / 1620 aluminum-plastic pipe
  • Main Body Material: Brass
  • Features: Modular design, easy to replacement

25-20-XX

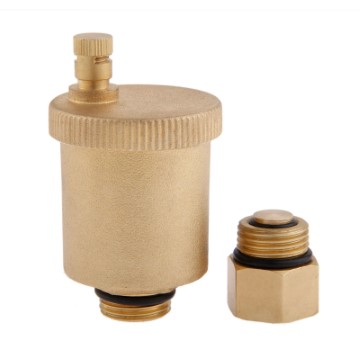

Air Vent

  • Product Model: 13-10-XX
  • Surface Treatment: brass
  • Maximum Temperature Resistance: 100℃
  • Blocking Valve Specifications: 1/2" / 3/4" / 1"
  • Body Material: brass

13-10-XX

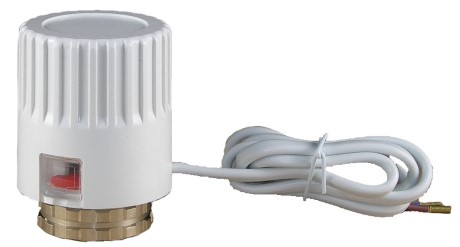

Electric Drive

  • Product Model: 60-00-01
  • Power Supply: 220VAC/24VAC
  • Interface Thread: thread G1/2"
  • Main Body Material: PA66
  • Actuation Stroke: 3.5mm
  • Ambient Temperature: -10℃~60℃
  • Maximum Thrust: />110N
  • Power: 3W
  • Interface Size: M30X1.5
  • Protection Level: IP40

60-00-01

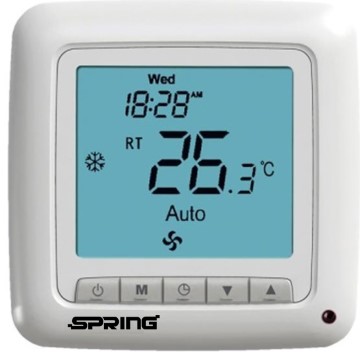

Room Thermostat

  • Product Model: 62-10-01
  • Power Supply: 220VAC
  • Ambient Temperature: -5℃~60℃
  • Temperature Control Range: 10℃~30℃
  • Control Accuracy: ±1℃
  • Maximum Current: 10A

62-10-01
